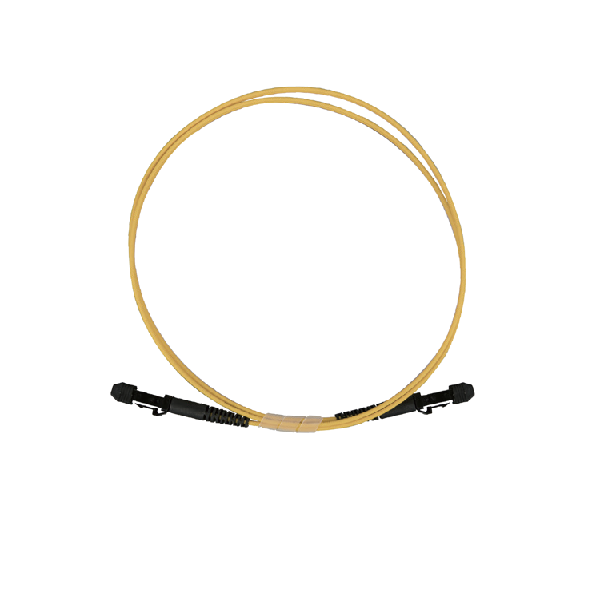

Fiber Optic Jumper

Optical fiber patch cords serve as essential connectivity components in optical communication networks. Constructed with precision-engineered fiber cores and high-precision connectors, they facilitate high-speed, low-loss optical signal transmission. These patch cords are extensively utilized in data centers, telecommunications networks, broadcasting systems, and industrial Internet applications, fulfilling the demand for high-bandwidth, long-distance, and highly reliable communication. Key features of optical fiber patch cords include a variety of connector types (such as LC, SC, FC, and ST), ensuring compatibility with mainstream equipment. They are available in both single-mode and multi-mode configurations, supporting diverse transmission distances and data rates. Enhanced designs, such as armored and bend-resistant structures, improve mechanical durability. Additionally, their low insertion loss contributes to improved signal transmission efficiency. Whether used for cabling in server rooms or for interconnecting equipment, high-quality optical fiber patch cords represent an optimal solution for achieving stable and reliable communication.

Electrical performance

          Type

SM MM
Interface  PC UPC APC PC
Return Loss
≥50dB
≥50dB
≥60dB
≥30dB

Insertion Loss

≤0.2dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Useful Life

500 cycles repeated insertions and removals,

 change in insertion loss value ≤0.2dB

Operation Temperature
-40℃ +85℃
Optical cable diameter
Φ0.9,Φ1.2,Φ2.0,Φ3.0,Φ4.5
