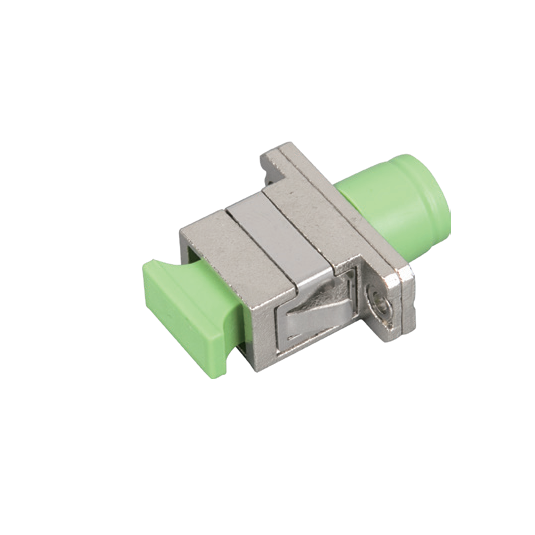

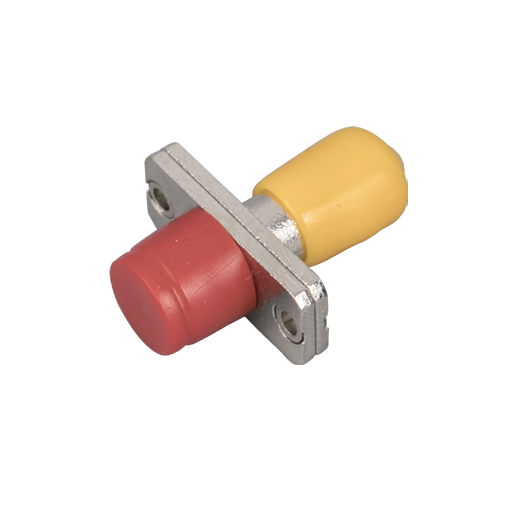

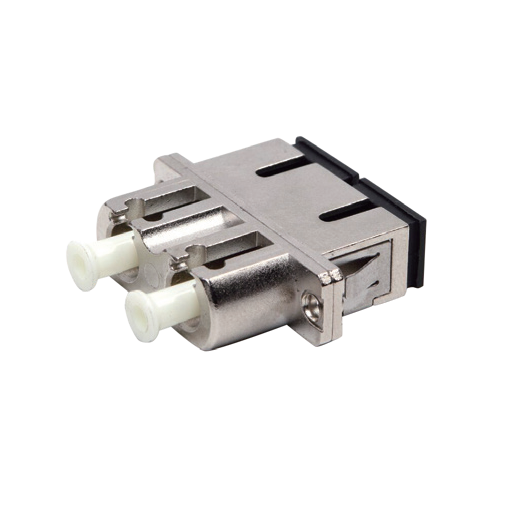

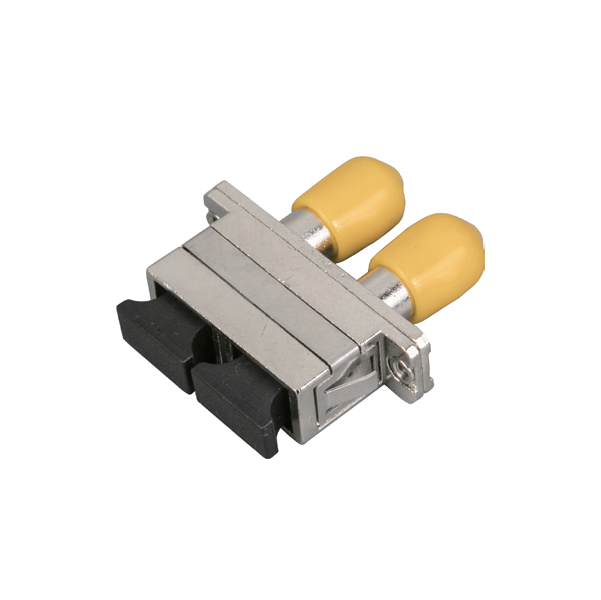

Fiber Optic Converter

The optical fiber converter is specially designed for high-reliability optical fiber networks. It adopts ultra-precise ceramic sleeves to achieve micron-level precise core alignment, ensuring stable and efficient signal transmission. The product is fully compatible with various interface types such as LC/SC/FC/ST, meeting the requirements of single-mode, multi-mode and MPO high-density cabling. The main body is made of high-strength phosphor bronze or zirconia ceramic, which is wear-resistant and corrosion-resistant, maintaining performance as good as new. It is widely used in data centers, 5G base stations, fiber to the home and enterprise networks. The optical fiber converter of Nalei has passed professional certifications and its quality is trustworthy.

Electrical performance

          Type

SM MM
Interface  PC UPC APC PC

Insertion Loss

≤0.2dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Useful Life

500 cycles repeated insertions and removals,

 change in insertion loss value ≤0.2dB

Operation Temperature
-40℃ +85℃
Storage Temperature
-40℃ +85℃
